Welded Tanks

In steel and stainless steel from 50 – 10,000 m3

LIPP welded storage tanks offer the ideal storage solution for a wide variety of media. Tanks are produced by means of an automated welding process specially developed by LIPP and can be constructed with steplessly adjustable volumes of 50 to 10,000 m³ according to the application. LIPP offers a corresponding selection of metallic materials suitable for use with storage media ranging from drinking water and foodstuffs to ethanol or oil. These materials range from a variety of different steel grades to high-alloy stainless steels. The automated process meets the highest quality standards.

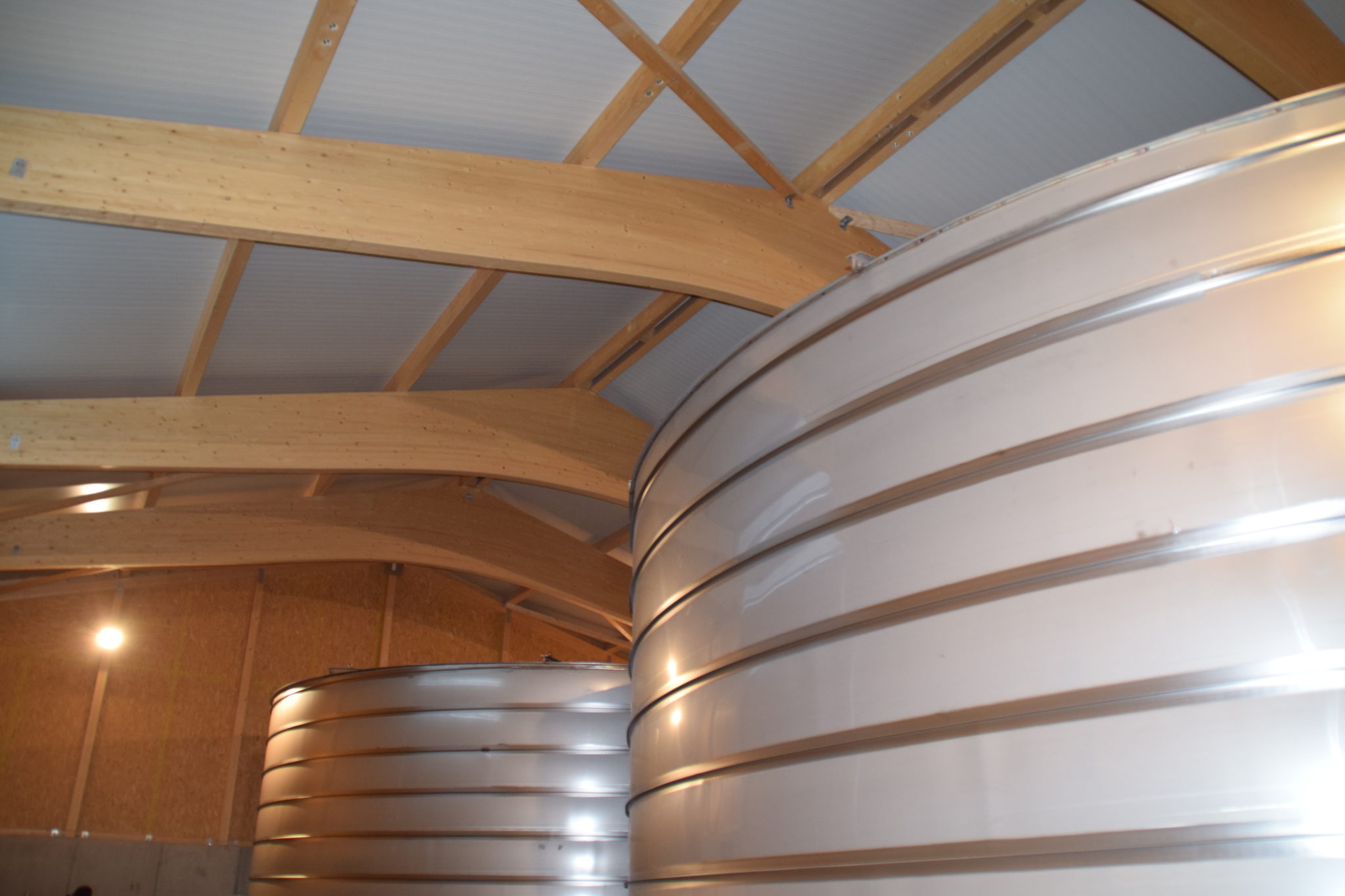

LIPP storage tanks can be produced within a very short time, either on site in the open air or inside a building. The special circumferential profile ensures additional stability compared to conventional processes.

Three different welding processes based on the LIPP system and adjusted to the application
Three different welding processes based on the LIPP system and adjusted to the application
  • Solutions for a wide variety of applications and requirements
  • Optimum quality thanks to automated welding process
  • Material savings and additional stability thanks to circumferential profile
  • Short construction times thanks to mechanised and automated production
  • On-site production, indoors or in the open air
  • Production by qualified technical personnel

Technical Data

Diameter
continuously variable from 6 to 50 m

Height
continuously variable from 3 to 30 m

Volume
from 10 to 10.000 m3
further sizes on request

Wall thickness
from 4 to 8 mm

Materials and Media

Black steels
various qualities

Liquid and solid Media
e.g. oil, water, cement, bulk goods, etc.

Certificates

Specialised company
Lipp is a certified specialised company according to article 19 of the German Water Resources Act, paying particular attention to the durability of its products, a professional execution and a solid workmanship in every detail.

TÜV NORD
Welding up to EXC3 class according to DIN EN 1090-2
Lipp is certified to calculate and manufacture structural components and steel structures up to EXC3 class according to DIN EN 1090-2.

Technical Data

Diameter
continuously variable from 3 to 25 m

Height
continuously variable from 3 to 20 m

Volume
from 20 to 5.000 m3
further sizes on request

Wall thickness
from 2 to 4 mm

Materials and Media

Stainless steel
e.g. 1.4301 [304] or 1.4571 [316Ti]
further materials on request

Liquid and solid Media
e.g. drinking water, food products, process water, etc.

Certificates

Specialised company
Lipp is a certified specialised company according to article 19 of the German Water Resources Act, paying particular attention to the durability of its products, a professional execution and a solid workmanship in every detail.

TÜV NORD
Welding up to EXC3 class according to DIN EN 1090-2
Lipp is certified to calculate and manufacture structural components and steel structures up to EXC3 class according to DIN EN 1090-2.
